Chapter 256: ESP32-H2 Architecture and Features

Chapter Objectives

By the end of this chapter, you will be able to:

• Describe the single-core RISC-V architecture of the ESP32-H2.
• Explain the strategic importance of a Wi-Fi-less ESP32 variant.
• Detail the features of the ESP32-H2‘s IEEE 802.15.4 and Bluetooth 5 (LE) radios.
• Understand the H2’s primary role as an ultra-low-power node in Thread, Zigbee, and Bluetooth Mesh networks.
• Clearly differentiate the use cases for the ESP32-H2 versus the ESP32-C6.
• Write code that correctly initializes the H2’s available radio stacks.

Introduction

Thus far, our journey through the ESP32 ecosystem has been anchored by one constant feature: Wi-Fi. Now, we encounter a chip that deliberately breaks that tradition to serve a new and vital role. The ESP32-H2 is a highly specialized variant designed from the ground up for one purpose: to be a best-in-class, ultra-low-power node on the emerging IoT mesh networks.

By removing the Wi-Fi radio entirely, Espressif has created a lean, power-efficient, and cost-effective SoC that excels at running on IEEE 802.15.4 (the foundation for Thread and Zigbee) and Bluetooth LE. The H2 is not meant for building gateways or devices that talk directly to the cloud; it’s designed to be the battery-powered sensor on your door, the smart button on your wall, or the simple light bulb in a large mesh network. Understanding the H2 is crucial for grasping the architecture of modern smart home ecosystems like Matter, where different devices play specialized roles.

Theory

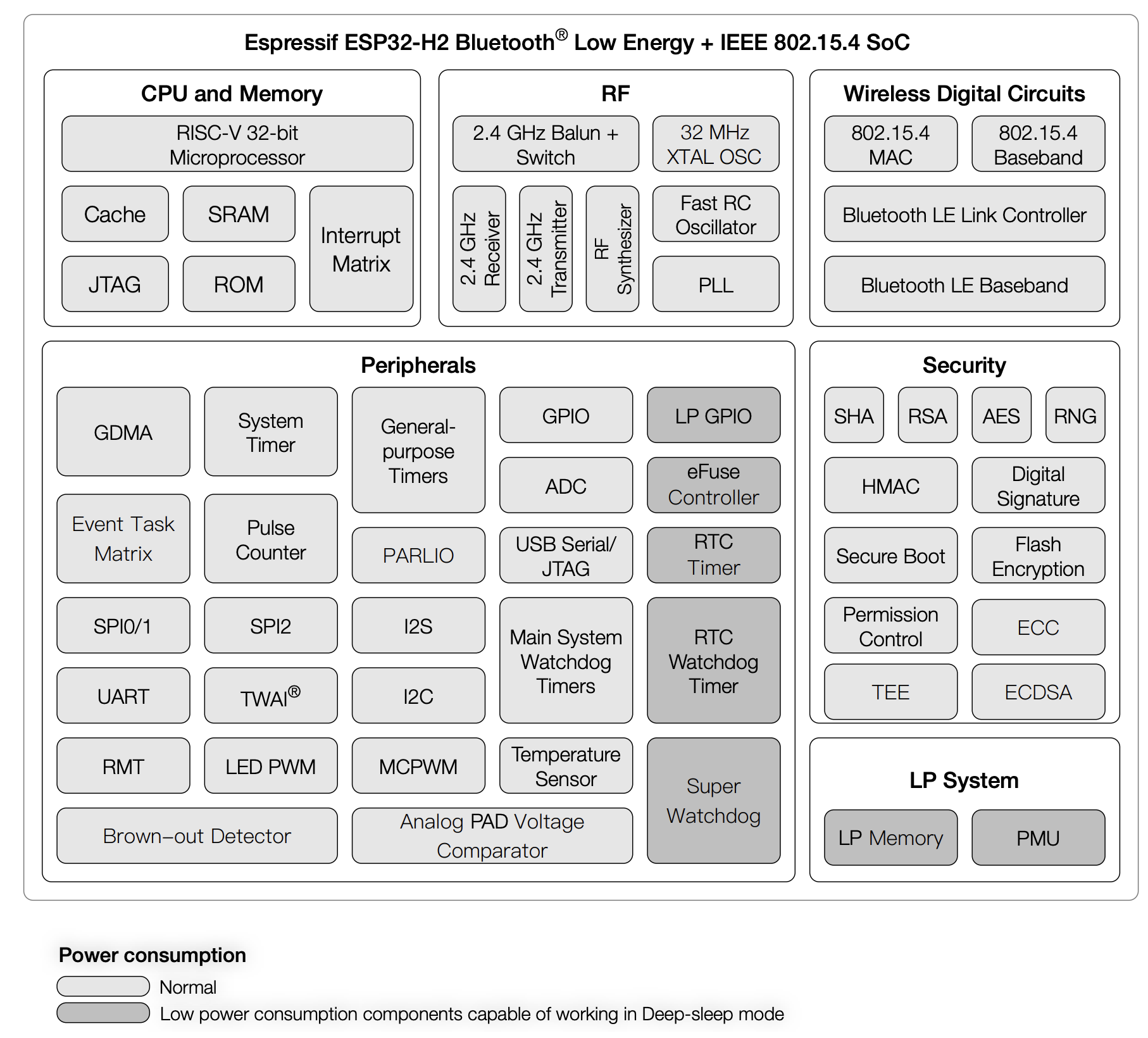

The ESP32-H2’s architecture is a testament to the principle of “doing one thing and doing it well.” Its design choices all center on creating a perfect low-power mesh networking endpoint.

1. CPU and Power Efficiency

• Single-Core RISC-V CPU: The H2 is powered by a 32-bit single-core RISC-V (RV32IMAC) CPU running at a maximum of 96 MHz. This clock speed is significantly lower than other variants, which is a deliberate choice to minimize power consumption. For the event-driven tasks of a typical sensor node, 96 MHz provides more than enough processing power while sipping energy.
• Low-Power Design: The chip is optimized for battery-powered applications. It includes fine-grained clock gating, multiple sleep modes, and an efficient DC-DC converter to ensure extremely low current draw when idle.

2. The Connectivity Duo: No Wi-Fi Allowed

The H2’s radio configuration is its defining characteristic.

• IEEE 802.15.4 Radio: This is the H2’s primary interface. This radio provides the physical layer for low-power, low-data-rate mesh networking protocols.
  • Thread: A secure, IP-based mesh networking protocol designed for the smart home. The H2 is an ideal Thread endpoint.
  • Zigbee: A well-established, mature mesh protocol used in countless smart home and industrial products. The H2 is fully Zigbee-compliant.
• Bluetooth 5 (LE): The H2 includes a full-featured Bluetooth 5 LE radio. Its role is twofold:
  1. Device Commissioning: A new device can use BLE to be securely added to a network from a smartphone.
  2. Local Control & Beacons: It can function as a BLE beacon or allow for direct control from a phone when Wi-Fi or the main mesh network is down.
• The Missing Piece: No Wi-Fi: The absence of a Wi-Fi radio is not a limitation; it is the H2’s key feature. Removing the complex and power-hungry Wi-Fi hardware reduces the chip’s cost, complexity, and, most importantly, its power consumption, making it suitable for multi-year operation on a single coin-cell battery.

3. Memory and I/O

• Memory: The H2 contains 320 KB of on-chip SRAM. This is sufficient for the radio stacks (like OpenThread or Zigbee) and user application code.
• GPIOs: It provides up to 26 GPIO pins, which is adequate for most sensor and simple actuator applications.
• Security: Like all modern ESP32 variants, the H2 comes with a robust security feature set, including Secure Boot, Flash Encryption, and the Digital Signature peripheral, ensuring that even the smallest endpoint devices can be highly secure.

Practical Examples

Let’s write a program that confirms the H2’s specific radio configuration by attempting to initialize all three common stacks and observing which ones succeed.

Example 1: Radio Availability Check

This code demonstrates programmatically how to check for hardware features. It will succeed in initializing BLE and 802.15.4 but will fail on Wi-Fi, as expected.

%%{init: {'theme': 'base', 'themeVariables': {'lineColor': '#4B5563', 'primaryColor': '#DBEAFE', 'primaryTextColor': '#1E40AF', 'primaryBorderColor': '#2563EB'}}}%%
flowchart TD
    A[Start: app_main] --> B["Initialize NVS Flash<br><b>nvs_flash_init()</b>"];
    B --> C["Get Chip Information<br><b>esp_chip_info()</b>"];
    C --> D{Has CHIP_FEATURE_WIFI_BGN?};
    D -- No --> E["Log: 'No Wi-Fi support'<br><i>(Expected Outcome)</i>"];
    D -- Yes --> F["Log Error: 'Unexpected Wi-Fi'<br><i>(Error Condition)</i>"];
    E --> G{Has CHIP_FEATURE_BLE?};
    F --> G;
    G -- Yes --> H["Log: 'BLE support found'<br>Initialize BLE Stack<br><b>esp_bt_controller_init()</b>"];
    H --> I{Has CHIP_FEATURE_IEEE802154?};
    G -- No --> I;
    I -- Yes --> J["Log: '802.15.4 support found'<br>Enable 802.15.4 Radio<br><b>esp_ieee802154_enable()</b>"];
    J --> K[End: Radio Check Complete];
    I -- No --> K;

    %% Styling
    classDef start-end fill:#D1FAE5,stroke:#059669,stroke-width:2px,color:#065F46;
    classDef process fill:#DBEAFE,stroke:#2563EB,stroke-width:1px,color:#1E40AF;
    classDef decision fill:#FEF3C7,stroke:#D97706,stroke-width:1px,color:#92400E;
    classDef error-handle fill:#FEE2E2,stroke:#DC2626,stroke-width:1px,color:#991B1B;
    classDef success-path fill:#E0F2FE,stroke:#0284C7,stroke-width:1px,color:#0369A1;


    class A,K start-end;
    class B,C,H,J process;
    class E,G,I success-path;
    class D decision;
    class F error-handle;

1. Code: Create a new project in VS Code with ESP32-H2 as the target. Use the following code in main.c.

#include <stdio.h>
#include "freertos/FreeRTOS.h"
#include "freertos/task.h"
#include "esp_log.h"
#include "nvs_flash.h"
#include "esp_wifi.h"
#include "esp_bt.h"
#include "esp_ieee802154.h"
#include "esp_chip_info.h"

static const char *TAG = "H2_RADIO_CHECK";

void app_main(void)
{
    ESP_LOGI(TAG, "ESP32-H2 Radio Availability Check");

    // Initialize NVS - a prerequisite for radio stacks
    esp_err_t ret = nvs_flash_init();
    if (ret == ESP_ERR_NVS_NO_FREE_PAGES || ret == ESP_ERR_NVS_NEW_VERSION_FOUND) {
        ESP_ERROR_CHECK(nvs_flash_erase());
        ret = nvs_flash_init();
    }
    ESP_ERROR_CHECK(ret);

    // Use esp_chip_info to verify features
    esp_chip_info_t chip_info;
    esp_chip_info(&chip_info);

    // --- Check for Wi-Fi ---
    if (chip_info.features & CHIP_FEATURE_WIFI_BGN) {
        ESP_LOGE(TAG, "[!] Chip reports Wi-Fi support, which is unexpected for H2!");
    } else {
        ESP_LOGI(TAG, "[+] Chip does NOT report Wi-Fi support, as expected.");
    }
    // Attempting to init Wi-Fi would fail at link time, as the libraries are not included
    // for H2 targets. We don't need to run the code to know this.

    // --- Check for Bluetooth LE ---
    if (chip_info.features & CHIP_FEATURE_BLE) {
        ESP_LOGI(TAG, "[+] Chip reports Bluetooth LE support.");
        // Initialize the stack to prove it works
        ESP_ERROR_CHECK(esp_bt_controller_mem_release(ESP_BT_MODE_CLASSIC_BT));
        esp_bt_controller_config_t bt_cfg = BT_CONTROLLER_INIT_CONFIG_DEFAULT();
        ESP_ERROR_CHECK(esp_bt_controller_init(&bt_cfg));
        ESP_ERROR_CHECK(esp_bt_controller_enable(ESP_BT_MODE_BLE));
        ESP_LOGI(TAG, "    -> BLE stack initialized successfully.");
    }

    // --- Check for IEEE 802.15.4 ---
    if (chip_info.features & CHIP_FEATURE_IEEE802154) {
        ESP_LOGI(TAG, "[+] Chip reports IEEE 802.15.4 support.");
        // Initialize the stack to prove it works
        ESP_ERROR_CHECK(esp_ieee802154_enable());
        ESP_LOGI(TAG, "    -> IEEE 802.15.4 radio enabled successfully.");
    }

    ESP_LOGI(TAG, "Radio check complete.");
}

2. Build and Flash:

Use the standard “ESP-IDF: Build, Flash and Monitor” command with your ESP32-H2 board.

3. Observe:

The monitor log will show a clean, successful initialization of the BLE and 802.15.4 stacks, and it will explicitly state that Wi-Fi hardware is not present. This confirms the chip’s intended configuration.

I (295) H2_RADIO_CHECK: ESP32-H2 Radio Availability Check
I (305) H2_RADIO_CHECK: [+] Chip does NOT report Wi-Fi support, as expected.
I (305) H2_RADIO_CHECK: [+] Chip reports Bluetooth LE support.
I (375) H2_RADIO_CHECK:     -> BLE stack initialized successfully.
I (375) H2_RADIO_CHECK: [+] Chip reports IEEE 802.15.4 support.
I (385) H2_RADIO_CHECK:     -> IEEE 802.15.4 radio enabled successfully.
I (395) H2_RADIO_CHECK: Radio check complete.

Variant Notes

The ESP32-H2 is a specialized tool. Choosing it requires understanding its role relative to its multi-radio sibling, the C6.

Common Mistakes & Troubleshooting Tips

Exercises

1. Product Design Choice: You are tasked with designing two smart home products:a) A simple, battery-powered temperature/humidity sensor that reports data once every five minutes.b) A smart power strip with four individually controllable outlets that can be accessed from a phone app anywhere in the world.For each product, state whether you would use an ESP32-C6 or an ESP32-H2. Justify your choice in one or two sentences based on the connectivity requirements.
2. Zigbee Light Example: Explore the ESP-IDF examples directory and navigate to examples/zigbee/esp_zigbee_light. Open the main/esp_light.c file. Without needing to flash it, read through the code to identify how it initializes the Zigbee stack (esp_zb_init) and how it defines the device’s role (e.g., as a “HA_ON_OFF_LIGHT_DEVICE_ID”). This provides insight into a real-world H2 application.
3. Datasheet Deep Dive: Find the official ESP32-H2 datasheet on the Espressif website. Locate the table detailing the power consumption in different modes. What is the typical current draw in “Deep-sleep” mode? How does this compare to the ESP32-C3? This exercise emphasizes the H2’s primary advantage.

Summary

• The ESP32-H2 is a specialized SoC built around a power-efficient, 96 MHz single-core RISC-V CPU.
• Its defining feature is the complete absence of a Wi-Fi radio, a deliberate choice to optimize for low power and cost.
• It provides a connectivity duo of IEEE 802.15.4 (for Thread/Zigbee) and Bluetooth 5 (LE).
• The H2 is purpose-built to be an ultra-low-power endpoint (a node or sensor) in mesh networks, ideal for battery-operated devices.
• It is a core component of the Matter ecosystem but serves a different role than its Wi-Fi-capable sibling, the ESP32-C6.

Further Reading

• ESP32-H2 Technical Reference Manual: The complete hardware specification.
  • ESP32-H2 Technical Reference Manual (PDF)
• ESP-IDF Zigbee Programming Guide: Official documentation on building Zigbee applications with Espressif chips.
  • ESP-IDF Zigbee Guide
• Connectivity Standards Alliance (CSA): The organization behind Matter, and a great resource for understanding Thread and Zigbee.
  • CSA Website
