Chapter 200: Industrial Protocol Gateway Design

Chapter Objectives

Upon completing this chapter, you will be able to:

• Understand the concept and importance of industrial protocol gateways.
• Identify key functions and architectural considerations for designing gateways.
• Design a basic protocol gateway on an ESP32, bridging different industrial protocols.
• Implement data mapping and transformation logic within a gateway.
• Manage multiple communication interfaces and protocol stacks concurrently using FreeRTOS.
• Address common challenges such as performance, resource management, and error handling in ESP32-based gateways.
• Evaluate the suitability of different ESP32 variants for various gateway applications.
• Troubleshoot common issues in gateway development.

Introduction

Industrial environments are often characterized by a heterogeneous mix of equipment from different vendors, installed at different times, and utilizing a variety of communication protocols. This diversity can create “islands of automation,” where devices and systems cannot easily exchange information. Industrial protocol gateways serve as crucial bridges, enabling seamless communication and data exchange between these disparate systems.

A protocol gateway, at its core, is a device that translates data from one communication protocol to another. For example, it might connect legacy serial devices using Modbus RTU to a modern Ethernet network using Modbus TCP, or expose data from industrial sensors to an IT system via OPC UA or MQTT. The ESP32, with its versatile connectivity options (Wi-Fi, Bluetooth, Ethernet via PHY, multiple UARTs, SPI, I2C), robust processing capabilities, and the ESP-IDF framework, is well-positioned to serve as a cost-effective and flexible platform for building custom industrial protocol gateways.

This chapter will explore the principles of designing and implementing industrial protocol gateways on ESP32. We will discuss architectural patterns, data mapping strategies, and practical considerations for building reliable and efficient multi-protocol converters. By leveraging the knowledge gained in previous chapters on specific protocols, you will learn how to combine these to create powerful interoperability solutions.

Theory

What is an Industrial Protocol Gateway?

An Industrial Protocol Gateway is a network device or software component that connects two or more networks or devices that use different communication protocols, allowing them to interoperate. Its primary function is to perform protocol conversion, translating data formats, addressing schemes, and communication semantics from a source protocol to a destination protocol.

Purpose and Use Cases:

• Integrating Legacy Systems: Connecting older equipment (e.g., serial PLCs, sensors) with modern Ethernet-based SCADA, MES, or IIoT platforms.
• Bridging Different Network Segments: Linking devices on an RS485 serial bus to an Ethernet LAN or a Wi-Fi network.
• Enabling IIoT Connectivity: Aggregating data from field devices and forwarding it to cloud platforms using protocols like MQTT or HTTP.
• Simplifying Network Architecture: Reducing the complexity of direct device-to-device connections by centralizing protocol translation.
• Data Aggregation: Collecting data from multiple similar devices and presenting it as a unified data source.

graph TD
    subgraph "Industrial Field Network (OT)"
        direction LR
        MRTU[("Modbus RTU<br>Slave Device<br>(PLC/VFD)")]-- "RS485" --- GW
        I2C[("I2C Sensor<br>(Temp/Humidity)")] -- "I2C Bus" --- GW
    end

    subgraph "Central Gateway"
        GW(("<br><b>ESP32 Gateway</b><br>Protocol & Data<br>Translator"))
    end

    subgraph "Plant/Enterprise Network (IT/OT)"
        direction LR
        SCADA[("SCADA System")]
        MQTT[("MQTT Broker<br>IIoT Platform")]
    end

    subgraph "Cloud / IT Infrastructure"
        CLOUD[("Cloud Platform<br>Analytics Dashboard")]
    end

    GW -- "<b>Modbus TCP</b><br>over Wi-Fi/Ethernet" --> SCADA
    GW -- "<b>MQTT</b><br>over Wi-Fi/Ethernet" --> MQTT
    MQTT --> CLOUD

    classDef default fill:#f9f9f9,stroke:#333,stroke-width:1px
    classDef gatewayNode fill:#EDE9FE,stroke:#5B21B6,stroke-width:2px,color:#5B21B6
    classDef fieldDevices fill:#DBEAFE,stroke:#2563EB,stroke-width:1px,color:#1E40AF
    classDef plantNetwork fill:#D1FAE5,stroke:#059669,stroke-width:1px,color:#065F46
    classDef cloudInfra fill:#FEF3C7,stroke:#D97706,stroke-width:1px,color:#92400E

    class GW gatewayNode
    class MRTU,I2C fieldDevices
    class SCADA,MQTT plantNetwork
    class CLOUD cloudInfra

Key Functions of a Gateway

A comprehensive industrial gateway performs several functions:

1. Protocol Conversion/Translation: This is the core function. It involves:
   • Physical Layer Conversion: e.g., RS485 to Ethernet.
   • Data Link Layer Conversion: e.g., Master/Slave polling to publish/subscribe.
   • Application Layer Conversion: Translating data PDU (Protocol Data Unit) formats, commands, and responses between protocols (e.g., Modbus RTU frame to Modbus TCP PDU, or Modbus register data to an OPC UA variable or an MQTT JSON payload).
2. Data Mapping and Transformation:
   • Address Mapping: Correlating register addresses or data point identifiers from one protocol to another (e.g., Modbus RTU holding register 40001 maps to Modbus TCP holding register 40001, or to an OPC UA node ns=1;s="Temperature").
   • Data Type Conversion: Handling differences in data types (e.g., a 16-bit integer from Modbus might need to be converted to a float for an MQTT payload).
   • Value Scaling/Transformation: Applying mathematical operations (e.g., converting raw sensor ADC values to engineering units).
   • Byte Swapping/Endianness: Adjusting byte order if protocols differ.
3. Buffering and Data Logging:
   • Buffering: Temporarily storing data if the destination network/protocol is slow or temporarily unavailable, preventing data loss.
   • Data Logging: Storing historical data locally (e.g., on an SD card or NVS) for later retrieval or analysis, especially if network connectivity is intermittent.
4. Network Segmentation and Security (More Advanced Gateways):
   • Acting as a firewall between networks.
   • Implementing security measures like VPNs, SSL/TLS encryption for data in transit, or access control lists. While full firewall capabilities are heavy for an ESP32, basic filtering or secure protocol usage (HTTPS, MQTTS, OPC UA security) is feasible.
5. Device Abstraction:
   • Presenting a unified interface to higher-level systems, regardless of the underlying field protocols.

Architectural Considerations for ESP32-based Gateways

When designing a gateway on an ESP32, consider the following:

• Scope of Conversion:
  • Single Protocol to Single Protocol: The simplest form, e.g., Modbus RTU master to Modbus TCP server.
  • One-to-Many: One source protocol instance (e.g., an MQTT client subscribing to commands) writing to multiple slave devices on a different protocol (e.g., several Modbus RTU slaves).
  • Many-to-One: Multiple source protocol instances (e.g., several Modbus RTU masters, or multiple sensors on different I2C buses) aggregating data to a single destination protocol instance (e.g., one MQTT client publishing all data).
  • Many-to-Many: Most complex, potentially involving multiple instances of multiple protocols. This can heavily strain ESP32 resources.

• Data Flow:
  • Unidirectional: Data flows only from source to destination (e.g., sensor data to cloud).
  • Bidirectional: Data flows in both directions (e.g., reading sensor data and writing setpoints from SCADA to a PLC via the gateway).
• Real-time Requirements:
  • Some industrial processes require very low latency. The ESP32’s processing time for protocol conversion and data handling must meet these needs.
  • FreeRTOS task priorities must be managed carefully to ensure timely processing of critical protocol data.
• Configuration Management:
  • How will the gateway be configured? (Mappings, IP addresses, serial parameters, device IDs).
  • Options: Hardcoded (not flexible), NVS, configuration files on SPIFFS/SD card, web interface, or provisioning via a mobile app.
• Error Handling and Resilience:
  • How to handle communication timeouts, disconnections, invalid data from devices, or errors in protocol translation.
  • Strategies for reconnection, retries, and reporting errors (e.g., via status OIDs in SNMP, or specific OPC UA status variables).

Core Software Components of an ESP32 Gateway

A typical ESP32-based gateway application will involve several software modules:

1. Protocol Stack Implementations:
   • Libraries or custom code for each protocol involved (e.g., freemodbus component for Modbus, esp-mqtt for MQTT, open62541 for OPC UA, lwIP for TCP/IP and SNMP, ESP-IDF UART/SPI/I2C drivers).
   • These are often managed as separate FreeRTOS tasks.
2. Data Acquisition Module(s):
   • Responsible for reading data from the source device(s) using the source protocol(s).
   • Example: A Modbus master task polling RTU slaves, an I2C task reading from a sensor.
3. Data Forwarding/Publishing Module(s):
   • Responsible for sending the translated data to the destination device(s)/system(s) using the destination protocol(s).
   • Example: A Modbus TCP server task responding to client requests, an MQTT client task publishing data.
4. Mapping Engine:
   • The heart of the gateway logic.
   • Contains the rules for:
     • Which source data points map to which destination data points.
     • Data type conversions.
     • Value transformations.
   • This can be implemented as a set of structures, lookup tables, or more complex rule-based logic.
5. Shared Data Store / Buffers:
   • A mechanism for passing data between the acquisition, mapping, and forwarding modules.
   • Could be FreeRTOS queues, global structures protected by mutexes, or stream buffers.
   • Careful synchronization is required to prevent race conditions.
6. Task Management (FreeRTOS):
   • Typically, each active protocol interface (e.g., Modbus RTU master, Modbus TCP server, MQTT client) runs in its own FreeRTOS task.
   • A central data processing/mapping task might also be used.
   • Task priorities, stack sizes, and inter-task communication need careful design.

graph TD
    subgraph "Hardware Drivers (ESP-IDF)"
        UART_Driver[UART Driver]
        I2C_Driver[I2C Driver]
        WIFI_Driver[Wi-Fi/Ethernet Driver]
    end

    subgraph "Protocol Tasks (FreeRTOS)"
        direction TB
        Modbus_Master["<b>Modbus RTU Master Task</b><br><i>(Polls Slaves)</i>"]
        I2C_Task["<b>I2C Sensor Task</b><br><i>(Reads Sensors)</i>"]
        MQTT_Client["<b>MQTT Client Task</b><br><i>(Pub/Sub)</i>"]
    end

    subgraph "Data Management & Logic"
        direction TB
        Buffer1(("<br>Shared Data Buffer<br><i>(Mutex Protected)</i>"))
        Mapper{<b>Mapping Engine</b><br>Address & Data<br>Transformation}
    end

    UART_Driver --> Modbus_Master
    I2C_Driver --> I2C_Task

    Modbus_Master -- "Raw Modbus Data" --> Buffer1
    I2C_Task -- "Raw Sensor Data" --> Buffer1

    Buffer1 --> Mapper

    Mapper -- "Transformed Data<br>(e.g., JSON Payload)" --> MQTT_Client

    MQTT_Client --> WIFI_Driver

    style UART_Driver fill:#FEE2E2,stroke:#DC2626,stroke-width:1px,color:#991B1B
    style I2C_Driver fill:#FEE2E2,stroke:#DC2626,stroke-width:1px,color:#991B1B
    style WIFI_Driver fill:#FEE2E2,stroke:#DC2626,stroke-width:1px,color:#991B1B

    style Modbus_Master fill:#DBEAFE,stroke:#2563EB,stroke-width:1px,color:#1E40AF
    style I2C_Task fill:#DBEAFE,stroke:#2563EB,stroke-width:1px,color:#1E40AF
    style MQTT_Client fill:#DBEAFE,stroke:#2563EB,stroke-width:1px,color:#1E40AF

    style Buffer1 fill:#FEF3C7,stroke:#D97706,stroke-width:1px,color:#92400E
    style Mapper fill:#EDE9FE,stroke:#5B21B6,stroke-width:2px,color:#5B21B6

Challenges in ESP32 Gateway Development

• Performance: Protocol conversion, especially for complex protocols or high data rates, can be CPU-intensive.
• Memory Limitations (RAM & Flash): Each protocol stack consumes resources. Multiple stacks can quickly exhaust the ESP32’s internal RAM, especially on variants with less memory. PSRAM can help but is slower.
• Real-time Constraints: Ensuring timely data transfer if required by the application.
• Concurrency and Synchronization: Managing shared data and resources between multiple protocol tasks requires robust use of FreeRTOS synchronization primitives (mutexes, semaphores, queues).
• Complexity: Integrating and debugging multiple communication stacks and custom mapping logic can be challenging.
• Security: If the gateway connects to external networks or handles sensitive data, implementing security for the relevant protocols (e.g., MQTTS, HTTPS, OPC UA security) is crucial and adds resource overhead.

Practical Examples

We will outline two examples. The first, Modbus RTU to Modbus TCP, is more detailed. The second, Modbus to MQTT, will be more conceptual, focusing on the gateway logic and assuming familiarity with the individual protocol implementations from previous chapters.

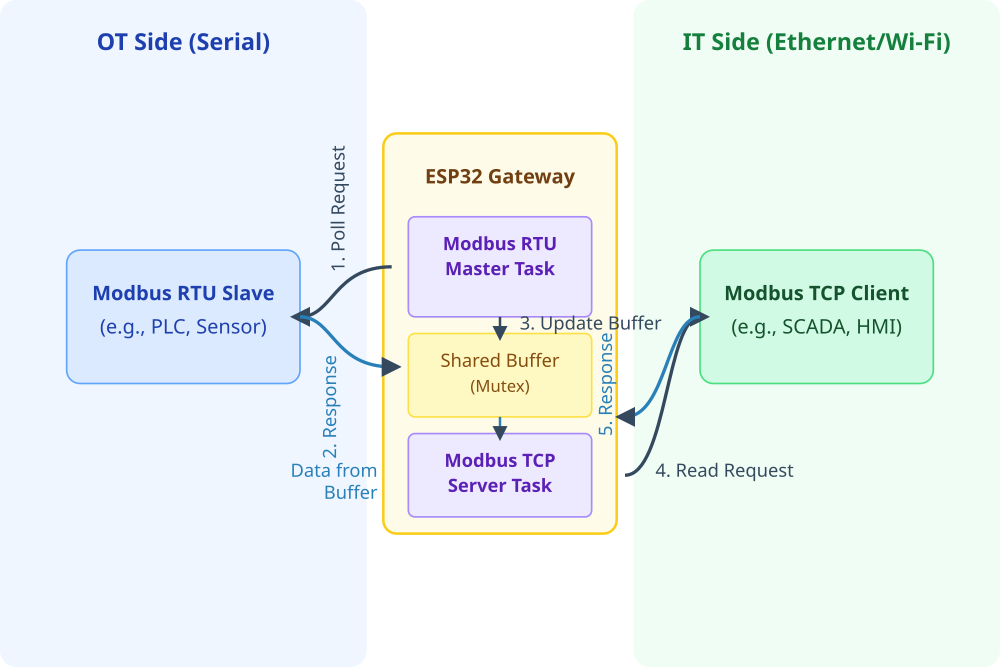

Example 1: Modbus RTU (RS485) to Modbus TCP Gateway

In this scenario, the ESP32 acts as a bridge:

• It’s a Modbus TCP server on the Wi-Fi/Ethernet network.
• It’s a Modbus RTU master on an RS485 serial bus, polling one or more RTU slave devices.
• Data read from RTU slaves is made available in the TCP server’s register space.
• Writes from a TCP client to the TCP server’s registers are translated into writes to the corresponding RTU slave registers.

Assumptions:

• You have freemodbus component configured for both TCP server and RTU master roles (this might require careful component configuration or using separate instances if the component doesn’t support dual roles easily. Often, you’d use the TCP server part of freemodbus and a separate Modbus RTU master library/implementation).
• For simplicity, we’ll focus on mapping Holding Registers.

Conceptual Data Mapping:

Let’s say we have one RTU slave (ID 1) with 5 holding registers (address 0-4).

We want to map these to the TCP server’s holding registers (address 0-4).

• TCP Client reads Holding Register 0 from ESP32 (TCP Server) -> ESP32 (RTU Master) reads Holding Register 0 from RTU Slave 1 -> ESP32 updates its internal buffer for TCP server.
• TCP Client writes to Holding Register 0 on ESP32 (TCP Server) -> ESP32 (RTU Master) writes to Holding Register 0 on RTU Slave 1.

Core Logic Snippets:

• Shared Data Buffer:

// Somewhere globally or in a gateway context structure
#define NUM_MAPPED_REGISTERS 5
USHORT usGatewayHoldingRegisters[NUM_MAPPED_REGISTERS]; // Buffer for TCP server
// Mutex for protecting access to usGatewayHoldingRegisters
SemaphoreHandle_t xGatewayRegisterMutex;

• Modbus RTU Master Task (rtu_master_task):
  This task periodically polls the RTU slave(s).

// Simplified RTU master polling loop
void rtu_master_task(void *pvParameters) {
    // Initialize Modbus RTU master stack for RS485 (e.g., using esp-modbus or custom)
    // ...

    while(1) {
        UCHAR ucSlaveAddr = 1;
        USHORT usRegAddr = 0; // Starting address on RTU slave
        USHORT usNRegs = NUM_MAPPED_REGISTERS;
        USHORT ausTempRTURegs[NUM_MAPPED_REGISTERS];

        // eMBMasterReqReadHoldingRegister(ucSlaveAddr, usRegAddr, usNRegs, timeout);
        // Or using esp-modbus:
        // cJSON *root = cJSON_CreateObject();
        // ESP_ERROR_CHECK(mbc_master_send_request(root, MB_FC_READ_HOLDING_REGISTERS));
        // ... process response ...

        // Example: Simulate reading from RTU slave and getting data into ausTempRTURegs
        // In a real scenario, this involves sending Modbus request and receiving response
        // For this example, let's assume ausTempRTURegs is filled by a successful read
        // e.g., for (int i=0; i<usNRegs; i++) ausTempRTURegs[i] = read_from_rtu_slave(ucSlaveAddr, usRegAddr + i);

        // Update the shared gateway buffer
        if (xSemaphoreTake(xGatewayRegisterMutex, portMAX_DELAY) == pdTRUE) {
            for (int i = 0; i < usNRegs; i++) {
                usGatewayHoldingRegisters[i] = ausTempRTURegs[i];
            }
            xSemaphoreGive(xGatewayRegisterMutex);
            ESP_LOGI("GW_RTU", "Updated gateway registers from RTU slave %d", ucSlaveAddr);
        }
        vTaskDelay(pdMS_TO_TICKS(1000)); // Poll every 1 second
    }
}

• Modbus TCP Server Callbacks (using freemodbus conventions):The freemodbus TCP server will call these when a TCP client interacts with its registers.
Tip: Handling writes from TCP to RTU is challenging due to the synchronous nature of Modbus TCP server callbacks and the potentially blocking nature of Modbus RTU master requests. A queue-based asynchronous mechanism for RTU writes initiated by TCP is generally preferred.

// Callback for TCP Server - Read Holding Registers
eMBErrorCode eMBRegHoldingCB(UCHAR * pucRegBuffer, USHORT usAddress, USHORT usNRegs, eMBRegisterMode eMode) {
    eMBErrorCode    eStatus = MB_ENOERR;
    int             iRegIndex;

    if ((usAddress >= 0) && (usAddress + usNRegs <= NUM_MAPPED_REGISTERS)) {
        iRegIndex = usAddress;
        switch (eMode) {
            case MB_REG_READ:
                if (xSemaphoreTake(xGatewayRegisterMutex, pdMS_TO_TICKS(100)) == pdTRUE) { // Timeout to prevent blocking server too long
                    while (usNRegs > 0) {
                        *pucRegBuffer++ = (UCHAR)(usGatewayHoldingRegisters[iRegIndex] >> 8);
                        *pucRegBuffer++ = (UCHAR)(usGatewayHoldingRegisters[iRegIndex] & 0xFF);
                        iRegIndex++;
                        usNRegs--;
                    }
                    xSemaphoreGive(xGatewayRegisterMutex);
                } else {
                    ESP_LOGE("GW_TCP", "Timeout acquiring mutex for TCP read");
                    eStatus = MB_ETIMEDOUT; // Or another appropriate error
                }
                break;

            case MB_REG_WRITE:
                if (xSemaphoreTake(xGatewayRegisterMutex, pdMS_TO_TICKS(100)) == pdTRUE) {
                    USHORT usCurrentSlaveAddr = 1; // Example: target RTU slave
                    USHORT usCurrentRegAddr = usAddress; // Assuming direct mapping for this example

                    while (usNRegs > 0) {
                        USHORT usNewValue = *pucRegBuffer++ << 8;
                        usNewValue |= *pucRegBuffer++;

                        // Update local buffer (optional, if RTU master also updates it)
                        usGatewayHoldingRegisters[iRegIndex] = usNewValue;

                        // TODO: Trigger a write to the Modbus RTU slave
                        // This is the complex part: the TCP server callback is synchronous.
                        // Directly calling a blocking RTU master write here can stall the TCP server.
                        // A better approach:
                        // 1. Place the write request into a queue.
                        // 2. The rtu_master_task (or a dedicated rtu_writer_task) picks it up.
                        // 3. The TCP server might respond "OK" assuming the write will eventually happen,
                        //    or it might have to wait for confirmation (adds latency).
                        ESP_LOGI("GW_TCP", "Write request for RTU Slave %d, Reg %d, Value %d",
                                 usCurrentSlaveAddr, usCurrentRegAddr + (iRegIndex - usAddress), usNewValue);
                        // For now, just update local:
                        // eMBMasterReqWriteHoldingRegister(usCurrentSlaveAddr, usCurrentRegAddr + (iRegIndex - usAddress), usNewValue, timeout);

                        iRegIndex++;
                        usNRegs--;
                    }
                    xSemaphoreGive(xGatewayRegisterMutex);
                } else {
                    ESP_LOGE("GW_TCP", "Timeout acquiring mutex for TCP write");
                    eStatus = MB_ETIMEDOUT;
                }
                break;
        }
    } else {
        eStatus = MB_ENOREG; // Illegal data address
    }
    return eStatus;
}

• Initialization in app_main:

void app_main(void) {
    // ... NVS, Wi-Fi init ...
    xGatewayRegisterMutex = xSemaphoreCreateMutex();
    if (xGatewayRegisterMutex == NULL) {
        ESP_LOGE("GW_MAIN", "Failed to create register mutex");
        return;
    }

    // Initialize and start Modbus TCP Server (e.g., eMBEnable())
    // ... (Refer to Modbus TCP Server chapter)

    // Initialize and start Modbus RTU Master (hardware and stack)
    // ... (Refer to Modbus RTU Master chapter)

    xTaskCreate(rtu_master_task, "rtu_master_task", 4096, NULL, 5, NULL);

    // Initialize Modbus TCP server (using freemodbus)
    // const uart_port_t uart_num = UART_NUM_0; // Or whichever UART for TCP, though it's IP based
    // eMBErrorCode eStatus_tcp = eMBTCPInit(10502); // Port for TCP, e.g. 502 is default but might need root
    // if (eStatus_tcp == MB_ENOERR) {
    //     eStatus_tcp = eMBEnable();
    // }
    // ESP_LOGI("GW_MAIN", "Modbus TCP Server Initialized (Status: %d)", eStatus_tcp);

    // The freemodbus eMBPoll() for the TCP server needs to be called periodically.
    // This is often done in a dedicated task or integrated into an existing polling loop.
    // For example:
    // xTaskCreate([](void*){ while(1){ eMBPoll(); vTaskDelay(pdMS_TO_TICKS(20));}}, "tcp_poll", 2048, NULL, 5, NULL);
}

Build and Run:

• Ensure freemodbus is configured for TCP server mode and you have a Modbus RTU master implementation.
• Connect an RS485 transceiver for RTU communication.
• Connect one or more Modbus RTU slaves.
• Use a Modbus TCP client (e.g., Modbus Poll, QModMaster) to connect to the ESP32’s IP address and read/write the mapped holding registers.

Example 2: Modbus (RTU or TCP) to MQTT Gateway (Conceptual)

Scenario:

• ESP32 reads data from Modbus slave devices (either RTU via serial or TCP via network).
• Data is formatted (e.g., into JSON) and published to an MQTT broker.
• (Optional) ESP32 subscribes to specific MQTT topics for commands, which are then translated to Modbus write operations.

Core Logic Components:

1. Modbus Client Task(s):
   • One or more tasks responsible for polling Modbus slave devices (RTU or TCP).
   • Uses esp-modbus or freemodbus in master mode.
   • Reads data based on a predefined list of Modbus addresses/registers.
2. MQTT Client Task:
   • Uses esp-mqtt component.
   • Connects to an MQTT broker.
   • Publishes data received from Modbus tasks.
   • (Optional) Subscribes to command topics.
3. Data Mapping and Formatting Logic:
   • A configuration defining:
     • Modbus slave ID, register type, register address, data type.
     • Corresponding MQTT topic for publishing.
     • JSON structure for the payload.
     • (For writes) MQTT command topic, expected payload format, and corresponding Modbus write parameters.
   • Example JSON payload for publishing:{“deviceId”: “Sensor1”, “temperature”: 25.5, “humidity”: 60.1}
4. Main Gateway Task / Data Flow Management:
   • Coordinates data flow: Modbus read -> Data Transformation -> MQTT publish.
   • Handles MQTT command: MQTT subscribe -> Command Parsing -> Modbus write.
   • Uses queues or event groups for inter-task communication.

Simplified Data Publishing Flow:

// In Modbus Client Task, after reading data:
// ModbusData modbus_data = ... // struct containing read values
// prepare_and_publish_to_mqtt(modbus_data);

void prepare_and_publish_to_mqtt(ModbusData data) {
    char json_payload[200];
    // Format data into JSON (e.g., using cJSON or snprintf)
    // sprintf(json_payload, "{\"temperature\": %.1f, \"pressure\": %d}", data.temp, data.pressure);

    // Get MQTT client instance (initialized elsewhere)
    // esp_mqtt_client_handle_t client = get_mqtt_client();
    // if (client) {
    //    esp_mqtt_client_publish(client, "esp32/sensor/data", json_payload, 0, 1, 0);
    // }
}

// In MQTT event handler (for commands):
// if (event->topic_len > 0 && strncmp(event->topic, "esp32/command/setpoint", event->topic_len) == 0) {
//    // Parse event->data (e.g., JSON for new setpoint)
//    // Create a Modbus write request structure
//    // Send request to a queue processed by Modbus Client Task for writing
// }

Tip: For a robust Modbus to MQTT gateway, consider edge cases like MQTT broker disconnection, Modbus device timeouts, and data consistency. A clear mapping configuration (perhaps from NVS or a file) is essential for maintainability.

Variant Notes

The choice of ESP32 variant significantly impacts gateway capabilities:

Key Considerations Across Variants:

• Number of UARTs: Crucial for gateways involving multiple Modbus RTU or other serial lines. ESP32/S3 generally offer more.
• Ethernet: For reliable wired connectivity, ESP32-S3 variants with built-in Ethernet MAC are ideal when paired with an external PHY. Other variants can use SPI-Ethernet modules (e.g., W5500) or USB-Ethernet (on S2/S3).
• RAM and PSRAM: The total memory footprint of all protocol stacks, data buffers, and application logic must fit. PSRAM is a significant advantage for S3/S2 if available and configured.
• Processing Power: Dual-core (ESP32, ESP32-S3) helps manage concurrent protocol handling more effectively by allowing tasks to be pinned to different cores.

Common Mistakes & Troubleshooting Tips

Exercises

1. Implement Modbus RTU to TCP Gateway (Holding Registers):Complete the implementation of the Modbus RTU (master) to Modbus TCP (server) gateway outlined in “Practical Example 1”. Focus on reading 5 holding registers from one RTU slave (ID 1, addresses 0-4) and mapping them to TCP server holding registers 0-4. Test reading these registers using a Modbus TCP client.
2. Add Write Capability to RTU-TCP Gateway:Extend Exercise 1 to support writing from the Modbus TCP client to one of the mapped holding registers (e.g., TCP register 0 maps to RTU Slave 1, register 0). Implement a robust (e.g., queue-based) mechanism for the RTU master task to perform the write operation based on the request from the TCP server callback.
3. Design a Simple Serial ASCII to MQTT Gateway:Assume a legacy device communicates over UART using simple ASCII commands (e.g., “READ TEMP\r\n” returns “TEMP=25.3\r\n”). Design and implement an ESP32 gateway that:
   • Periodically sends the “READ TEMP” command to the serial device.
   • Parses the ASCII response.
   • Publishes the temperature value as a JSON payload ({"temperature": 25.3}) to an MQTT topic.
4. Conceptual Design: Multi-Sensor to OPC UA Gateway:You have three different I2C sensors (e.g., temperature, humidity, pressure). Outline the software architecture for an ESP32 gateway that:
   • Reads data from all three I2C sensors.
   • Exposes these readings as distinct variables within an OPC UA server running on the ESP32.
   • Describe the main FreeRTOS tasks, data structures for mapping, and key open62541 server API calls you would use to create the OPC UA address space.
5. Gateway Configuration Study:Research and compare three different methods for configuring a protocol gateway’s mapping rules and connection parameters on an ESP32 (e.g., hardcoding, NVS, web server with HTML forms). Discuss the pros and cons of each in terms of flexibility, ease of use, security, and resource consumption.

Summary

• Industrial protocol gateways are essential for interoperability, bridging devices and systems that use different communication protocols.
• Key gateway functions include protocol conversion, data mapping/transformation, buffering, and potentially device abstraction.
• ESP32 provides a versatile hardware platform for building gateways, leveraging its connectivity and processing power with ESP-IDF and FreeRTOS.
• Gateway architecture involves careful design of data flow, task management, and shared data handling between different protocol stack implementations.
• Common gateway patterns include Modbus RTU/TCP bridging and forwarding data to IIoT platforms using MQTT or OPC UA.
• Resource management (RAM, CPU, stack), error handling, and robust configuration are critical for reliable gateway operation.
• The choice of ESP32 variant depends on the complexity and number of protocols being bridged, with ESP32-S3 being highly capable for demanding scenarios.

Further Reading

• ESP-IDF Documentation: For UART, I2C, SPI, Ethernet, Wi-Fi, NVS, FreeRTOS APIs.
  • https://docs.espressif.com/projects/esp-idf/en/v5.4/esp32/
• FreeRTOS Documentation: For task management and synchronization primitives.
  • https://www.freertos.org/Documentation/
• Previous Chapters in this Volume: Refer to chapters on Modbus, OPC UA, MQTT, etc., for specific protocol stack details.
• “Industrial Network Security” by Eric D. Knapp and Joel Thomas Langill: While focused on security, it provides context on industrial networks and protocols.
• Online articles and whitepapers on “Industrial IoT Gateways” and “Protocol Converter Design Patterns.”
