Chapter 24: Advanced Shell Scripting: Regular Expressions (`grep`, `sed`)

Chapter Objectives

By the end of this chapter, you will be able to:

Understand the fundamental concepts and syntax of regular expressions (regex) for pattern matching.
Implement grep to search for complex patterns within text files and command output.
Utilize sed (Stream Editor) to perform sophisticated in-place text transformations and substitutions.
Construct complex regular expression patterns using metacharacters, quantifiers, and character classes.
Debug common regular expression errors and optimize patterns for efficiency in embedded environments.
Apply these tools to solve real-world text processing problems in embedded Linux, such as log file analysis and script automation.

Introduction

In the world of embedded Linux, you will constantly interact with text. From parsing kernel boot logs and analyzing system messages to configuring network services and automating build scripts, the ability to manipulate text efficiently is not a luxury—it is a fundamental skill. While simple string matching can solve some problems, it quickly falls short when faced with the variable and complex data streams inherent in embedded systems. This is where the true power of the Linux command line comes to life through regular expressions.

A regular expression, often shortened to regex, is a special sequence of characters that defines a search pattern. It is a language unto itself, designed for describing patterns in text with incredible precision and flexibility. Imagine needing to find all IP addresses in a log file, extract specific sensor readings that fall within a certain range, or automatically modify a configuration file during a system update. These tasks, which would be complex and error-prone with traditional methods, become straightforward with the right pattern.

This chapter introduces two of the most powerful text processing utilities in the Linux ecosystem: grep (Global Regular Expression Print) and sed (Stream Editor). We will explore how grep uses regular expressions to filter text and how sed uses them to transform it. On your Raspberry Pi 5, these tools are indispensable for debugging, automation, and system management. By mastering them, you will transition from simply using the shell to commanding it, equipped to handle any text processing challenge an embedded system can present.

Technical Background

The Genesis and Philosophy of Regular Expressions

The concept of a regular expression has its roots in theoretical computer science, specifically in automata theory and formal language theory, which study mathematical models of computation. In the 1950s, mathematician Stephen Cole Kleene formalized the description of a “regular language,” a class of languages that can be recognized by a finite automaton. The notation he developed to describe these languages was the direct ancestor of the regular expressions we use today.

This theoretical foundation found its first major practical application in the early Unix text editors developed at Bell Labs in the late 1960s and 1970s. Ken Thompson, one of the creators of Unix, implemented regular expressions in the ed editor, allowing users to search for patterns far more complex than simple fixed strings. This utility was so powerful that it was later extracted into a standalone program named grep, a name derived from the ed command g/re/p (globally search for a regular expression and print the matching lines).

timeline
    title The Journey of a Regular Expression
    1950s : Theoretical Foundations
        : Stephen Kleene formalizes "regular languages" in automata theory.
        : The mathematical notation for these languages is the direct ancestor of modern regex.
    1960s-70s : Unix & The First Implementation
        : Ken Thompson implements regex in the 'ed' text editor on Unix at Bell Labs.
        : This provides powerful pattern matching beyond simple string searching for the first time.
    1974 : The Birth of 'grep'
        : The regex search functionality is extracted from 'ed' into a standalone tool.
        : It is named 'grep' from the 'ed' command g/re/p (globally search for a regular expression and print).
    Present Day : Ubiquitous Tool
        : Regex is a core component in countless tools (grep, sed, awk), editors (Vim, VS Code), and programming languages (Python, Perl, JavaScript).
        : It embodies the Unix philosophy: a small, specialized, and powerful tool for text processing.

The philosophy behind these tools is central to the Unix/Linux design paradigm: create small, specialized programs that do one thing well and can be combined to perform complex tasks. grep doesn’t edit files; it only searches. sed is not a full-featured editor; it processes streams of text. By chaining these utilities together with pipes (|), a developer can construct sophisticated text-processing pipelines without writing a single line of compiled code. This approach is particularly valuable in embedded systems, where resources may be limited and the ability to quickly analyze system behavior via the shell is critical for debugging.

Anatomy of a Regular Expression

A regular expression is a sequence of characters, but some characters have special meanings. These metacharacters are the building blocks of a pattern. The two main categories of characters in a regex are literals (standard text characters like ‘a’, ‘b’, ‘1’, ‘2’) and metacharacters.

The most basic regex consists only of literals. For example, the pattern error will match the literal string “error” wherever it appears. The real power, however, comes from using metacharacters to define the structure of the pattern, not just its literal content.

Anchors: Tying Matches to Positions

Sometimes, you don’t just want to know if a pattern exists, but where it exists. Anchors are metacharacters that don’t match any character but instead match a position before, after, or between characters.

The caret (^) matches the beginning of a line. The pattern ^ERROR will only match the word “ERROR” if it is the very first thing on a line, which is common for system log entries.
The dollar sign ($) matches the end of a line. The pattern complete$ will only match the word “complete” if it is the last thing on a line, useful for finding processes that have finished successfully.

Character Classes and Sets: Matching One of Many

Often, you need to match any character from a specific set. Character classes are used for this purpose.

The dot (.) is the simplest character class. It is a wildcard that matches any single character (except a newline). The pattern c.t would match “cat”, “cot”, and “c_t”, but not “ct” or “coat”.
Bracket expressions ([]) allow you to define a custom set of characters. The pattern [aeiou] will match any single lowercase vowel. For instance, gr[ae]y will match both “gray” and “grey”.
You can also specify a range of characters within brackets. [0-9] matches any single digit, and [a-zA-Z] matches any single uppercase or lowercase letter.
A caret (^) as the first character inside a bracket expression negates the set. [^0-9] matches any character that is not a digit.

Tip: Many common character sets have predefined names, known as POSIX character classes. For example, [[:digit:]] is equivalent to [0-9], [[:alpha:]] is equivalent to [a-zA-Z], and [[:space:]] matches whitespace characters. These are often more portable and readable than explicit ranges.

Quantifiers: Specifying Repetition

Quantifiers control how many times a preceding character or group can occur. They turn a simple pattern into a variable one.

The asterisk (*) matches the preceding element zero or more times. The pattern a*b will match “b”, “ab”, “aaab”, and so on. This is often used for optional or repeating characters.
The plus sign (+) matches the preceding element one or more times. It is similar to *, but requires at least one occurrence. a+b matches “ab” and “aaab”, but not “b”.
The question mark (?) makes the preceding element optional, matching it zero or one time. The pattern colou?r matches both “color” and “colour”.

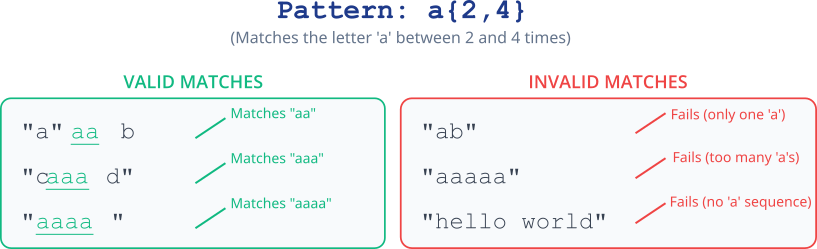

Brace expressions ({}) provide precise control over the number of repetitions.
- {n} matches the preceding element exactly n times. [0-9]{3} matches exactly three digits.
- {n,} matches the preceding element at least n times.
- {n,m} matches the preceding element at least n times but no more than m times.

Grouping and Capturing

Parentheses () serve two purposes in regular expressions. First, they group parts of a pattern together, allowing you to apply a quantifier to an entire sub-pattern. For example, (ab)+ will match “ab”, “abab”, “ababab”, and so on. Without the parentheses, ab+ would match “ab”, “abb”, “abbb”, etc., as the + would only apply to the b.

Second, and more powerfully, they capture the portion of the string that matched the sub-pattern. This captured text can be referenced later, a feature that is the cornerstone of the sed command’s substitution capability. These are known as backreferences. The first captured group is referenced by \1, the second by \2, and so on.

Category	Metacharacter	Name / Function	Example Pattern	What It Matches
Anchors	^	Start of Line	^LOG:	“LOG:” only at the beginning of a line.
Anchors	$	End of Line	success$	“success” only at the end of a line.
Character Classes	.	Wildcard	h.t	“hat”, “hot”, “h_t”, etc. (any single character).
	[…]	Character Set	gr[ae]y	“gray” or “grey”.
	[^…]	Negated Set	[^0-9]	Any single character that is not a digit.
Quantifiers	*	Zero or More	ab*c	“ac”, “abc”, “abbc”, “abbbc”…
	+	One or More	ab+c	“abc”, “abbc” (but not “ac”).
	?	Zero or One (Optional)	colou?r	“color” or “colour”.
	{n,m}	Range Quantifier	[0-9]{2,4}	A sequence of 2, 3, or 4 digits.
Grouping	(…)	Group Sub-pattern	(ha)+	“ha”, “haha”, “hahaha”…
Grouping	\1, \2	Backreference	s/(a)-(b)/\2-\1/	Swaps captured groups. “a-b” becomes “b-a”.

The `grep` Utility: A Regex-Powered Filter

grep is the quintessential tool for searching text with regular expressions. In its simplest form, you provide a pattern and a file, and grep prints every line from the file that contains a match for the pattern.

The basic syntax is grep [OPTIONS] PATTERN [FILE...].

While simple string searches are useful, grep‘s power is unlocked with regex. For example, to find all lines in /var/log/syslog that indicate a USB device was connected, you might notice that these lines often contain the string “usb” followed by a bus-device number like “1-1.2”. A regex can capture this pattern precisely:

Bash

grep "usb [0-9]-[0-9]\.[0-9]" /var/log/syslog

This command searches for the literal string “usb “, followed by a digit, a hyphen, another digit, a literal dot (which must be escaped with a backslash \. because . is a metacharacter), and a final digit.

grep has several command-line options that are invaluable in embedded development:

Option	Long Option	Description	Example Usage
-i	–ignore-case	Performs a case-insensitive search.	grep -i “error” log.txt
-v	–invert-match	Selects non-matching lines. Useful for filtering out noise.	dmesg \| grep -v “DEBUG”
-r, -R	–recursive	Searches for patterns recursively in a directory tree.	grep -r “API_KEY” /etc/
-E	–extended-regexp	Enables Extended Regular Expressions (ERE) for cleaner patterns.	grep -E “eth0\|wlan0”
-o	–only-matching	Prints only the matched (non-empty) parts of a matching line.	… \| grep -oE “[0-9]+\.[0-9]+”
-c	–count	Suppresses normal output; instead prints a count of matching lines.	grep -c “Failed password” auth.log
-A n	–after-context=n	Prints n lines of trailing context after matching lines.	grep -A 3 “FATAL” app.log
-B n	–before-context=n	Prints n lines of leading context before matching lines.	grep -B 2 “Exception” app.log

The `sed` Utility: The Stream Editor

While grep is for finding text, sed is for changing it. sed reads text from a file or a pipe, applies a series of commands to each line, and prints the result to standard output. It does not modify the original file unless you explicitly tell it to with the -i (in-place) option.

The most common sed command is substitution, which uses a regex to find text and replaces it with something else. The syntax is s/REGEX/REPLACEMENT/FLAGS.

Imagine you have a configuration file where you need to change a hostname from old-host to new-pi-5. A simple sed command can do this:

Bash

sed 's/old-host/new-pi-5/' config.txt

This command will print the entire contents of config.txt, but with the first occurrence of “old-host” on each line replaced. To replace all occurrences on a line, you add the g (global) flag:

Bash

sed 's/old-host/new-pi-5/g' config.txt

The true power of sed emerges when you combine its substitution command with captured groups from a regex. Suppose you have log entries formatted like [TIMESTAMP] LEVEL: Message. You want to reformat them to LEVEL (TIMESTAMP): Message. You can use capturing parentheses in the regex and backreferences in the replacement string.

graph TD
    A[Start] --> B["Input<br>(File or stdin)"];
    B --> C{"Read one line into<br><i>pattern space</i>"};
    C --> D{Apply sed script<br>e.g., 's/find/replace/'};
    D --> E{"Condition Met?<br>(Pattern found, address matches, etc.)"};
    E -- Yes --> F[Modify pattern space];
    E -- No --> G;
    F --> G["Print pattern space to stdout<br>(unless suppressed by -n)"];
    G --> H{"End of input?"};
    H -- No --> C;
    H -- Yes --> I[End];

    style A fill:#1e3a8a,stroke:#1e3a8a,stroke-width:2px,color:#ffffff
    style B fill:#0d9488,stroke:#0d9488,stroke-width:1px,color:#ffffff
    style C fill:#0d9488,stroke:#0d9488,stroke-width:1px,color:#ffffff
    style D fill:#8b5cf6,stroke:#8b5cf6,stroke-width:1px,color:#ffffff
    style E fill:#f59e0b,stroke:#f59e0b,stroke-width:1px,color:#ffffff
    style F fill:#eab308,stroke:#eab308,stroke-width:1px,color:#1f2937
    style G fill:#0d9488,stroke:#0d9488,stroke-width:1px,color:#ffffff
    style H fill:#f59e0b,stroke:#f59e0b,stroke-width:1px,color:#ffffff
    style I fill:#10b981,stroke:#10b981,stroke-width:2px,color:#ffffff

Bash

sed 's/^\[\([0-9.]*\)\] \([A-Z]*\): \(.*\)$/\2 (\1): \3/' app.log

Let’s break down this powerful command:

s/.../.../: The substitution command.
^\[$[0-9.]*$\]: This is the search pattern.
- ^: Matches the start of the line.
- \[: Matches a literal opening bracket.
- $[0-9.]*$: This is the first capturing group (\1). It matches and captures any sequence of digits and dots (the timestamp).
- \] : Matches the closing bracket and a space.
- $[A-Z]*$: This is the second capturing group (\2). It matches and captures a sequence of uppercase letters (the log level).
- : : Matches the colon and space.
- $.*$: This is the third capturing group (\3). It matches and captures the rest of the line (the message).
- $: Matches the end of the line.
\2 (\1): \3: This is the replacement string.
- \2: Inserts the content of the second captured group (the level).
- (\1): Inserts a space, an opening parenthesis, the content of the first captured group (the timestamp), and a closing parenthesis.
- : \3: Inserts a colon, a space, and the content of the third captured group (the message).

sed can do much more than substitution. It can delete lines (d), print specific lines (p), and execute commands based on address ranges (e.g., apply a command only to lines 5 through 10). This makes it a versatile tool for scripting automated changes to system files.

sequenceDiagram
    participant Stream as "Input Stream<br>(app.log)"
    participant SED as "sed Engine"
    participant Regex as "Regex Engine"
    participant Output as "Output Stream<br>(stdout)"

    rect rgba(248, 250, 252, 0.5)
        Note over Stream, SED: sed reads one line from the input stream.
        Stream->>SED: "[1625781600.123] ERROR: File not found"
    end

    rect rgba(248, 250, 252, 0.5)
        Note over SED, Regex: sed passes the line and pattern to the Regex Engine.
        SED->>Regex: Pattern: s/^\[\([0-9.]*\)\] \([A-Z]*\): \(.*\)$/...
        Regex-->>Regex: Match Attempt:
        Regex-->>Regex: 1. `^\[` matches "[".
        Regex-->>Regex: 2. `\([0-9.]*\)` matches and captures "1625781600.123" -> \1
        Regex-->>Regex: 3. `\] ` matches "] ".
        Regex-->>Regex: 4. `\([A-Z]*\)` matches and captures "ERROR" -> \2
        Regex-->>Regex: 5. `: ` matches ": ".
        Regex-->>Regex: 6. `\(.*\)$` matches and captures "File not found" -> \3
    end

    rect rgba(248, 250, 252, 0.5)
        Note over Regex, SED: Regex Engine reports a successful match and returns the captured groups.
        Regex->>SED: Success!<br>Group \1: "1625781600.123"<br>Group \2: "ERROR"<br>Group \3: "File not found"
    end

    rect rgba(248, 250, 252, 0.5)
        Note over SED, Output: sed constructs the new string using the replacement pattern and backreferences.
        SED->>SED: Replacement: \2 (\1): \3
        SED->>SED: Result: "ERROR (1625781600.123): File not found"
        SED->>Output: "ERROR (1625781600.123): File not found"
    end

    Note over Stream, Output: Process repeats for every line in the input stream.

Practical Examples

These examples assume you are logged into your Raspberry Pi 5 via SSH or using its terminal directly. The principles apply to any Linux system.

Example 1: Analyzing Kernel Boot Messages with `grep`

During boot, the Linux kernel prints thousands of messages to a buffer. You can view these with the dmesg command. This firehose of information can be overwhelming, but grep allows us to find exactly what we need.

Objective: Find all messages related to the network interface (eth0) and extract the assigned IP address.

1. Initial Exploration:

First, let’s look at the raw output for eth0 to understand its structure.

Bash

dmesg | grep "eth0"

You might see output like this (timestamps and details will vary):

Plaintext

[    1.234567] bcmgenet fd580000.ethernet eth0: Link is Up - 1Gbps/Full - flow control rx/tx
[   10.987654] bcmgenet fd580000.ethernet eth0: IPv6: ADDRCONF(NETDEV_CHANGE): eth0: link becomes ready
[   11.123123] bcmgenet fd580000.ethernet eth0: Link is Down
[   13.456456] bcmgenet fd580000.ethernet eth0: Link is Up - 1Gbps/Full - flow control rx/tx

This is useful, but we want to find the IP address, which is usually assigned later by a service like dhcpcd. Let’s search the system log instead.

2. Refining the Search with Extended Regex:

The system log (/var/log/syslog or accessible via journalctl) contains more detailed service information. We are looking for a line that says something like “eth0: leased 192.168.1.100 for 86400 seconds”. The IP address is a sequence of numbers and dots.

We will use grep -E for extended regular expressions to make the pattern cleaner. An IP address consists of four numbers (from 1 to 3 digits each) separated by dots.

Bash

# Search syslog for lines about eth0 leasing an IP address
grep -E "eth0: leased [0-9]{1,3}\.[0-9]{1,3}\.[0-9]{1,3}\.[0-9]{1,3}" /var/log/syslog

Explanation:

"eth0: leased " is a literal string.
[0-9]{1,3} matches any digit from 0 to 9, repeated between 1 and 3 times.
\. matches a literal dot. We must escape it.

This command should return the specific line containing the IP address:

… dhcpcd[…]: eth0: leased 192.168.1.123 for 86400 seconds

3. Extracting the IP Address with -o:

We don’t need the whole line, just the IP address itself. The -o option is perfect for this. We can refine our regex to match only the IP address on the line we found.

Bash

# First, find the line, then pipe it to another grep to extract the IP
grep -E "eth0: leased" /var/log/syslog | grep -oE "[0-9]{1,3}\.[0-9]{1,3}\.[0-9]{1,3}\.[0-9]{1,3}"

This pipeline first selects the correct line and then the second grep command extracts only the part of that line that matches the IP address pattern. The output will be clean:

Plaintext

192.168.1.123

This demonstrates how a precise regex combined with grep options can turn a log file into a structured data source.

Example 2: Batch Renaming Files with `sed` and `mv`

Imagine you have a set of sensor data files named with a YYYY-MM-DD timestamp, like sensorlog_2025-07-08.txt. You need to rename them to the DD-MM-YYYY format, e.g., sensorlog_08-07-2025.txt.

Objective: Rename files by reordering date components using sed‘s capturing groups.

1. Create Sample Files:

First, let’s create some dummy files to work with.

Bash

touch sensorlog_2025-07-08.txt
touch sensorlog_2025-07-09.txt
touch sensorlog_2025-07-10.txt
ls

Output:

sensorlog_2025-07-08.txt sensorlog_2025-07-09.txt sensorlog_2025-07-10.txt

2. Construct the sed Command for Renaming:

We will loop through the files, use sed to generate the new filename, and then use mv to perform the rename. The key is the sed command that rearranges the date.

Bash

for filename in sensorlog_*.txt; do
  # Use sed with capturing groups to generate the new name
  # Regex:       sensorlog_ (YYYY) - (MM) - (DD)  .txt
  # Capturing:               (\1)    (\2)    (\3)
  # Replacement: sensorlog_ \3   -  \2  -  \1   .txt
  new_filename=$(echo "$filename" | sed -E 's/sensorlog_([0-9]{4})-([0-9]{2})-([0-9]{2})\.txt/sensorlog_\3-\2-\1.txt/')

  # Echo the command first to ensure it's correct
  echo mv "$filename" "$new_filename"
done

Explanation of the sed command:

sed -E: Use extended regex.
's/.../.../': The substitution command.
sensorlog_: Literal text.
([0-9]{4}): Capture group 1 (\1): The 4-digit year.
-: Literal hyphen.
([0-9]{2}): Capture group 2 (\2): The 2-digit month.
-: Literal hyphen.
([0-9]{2}): Capture group 3 (\3): The 2-digit day.
\.txt: Literal “.txt”.
sensorlog_\3-\2-\1.txt: The replacement string, using backreferences to reorder the captured date parts.

graph TD
    subgraph "Batch Rename Script"
        A[Start] --> B{"Loop for each<br><i>sensorlog_*.txt</i> file"};
        B -- "File found" --> C["Get current filename<br>e.g., sensorlog_2025-07-08.txt"];
        C --> D{{"Generate new filename<br>using <i>sed</i> command"}};
        style A fill:#1e3a8a,stroke:#1e3a8a,stroke-width:2px,color:#ffffff
        style B fill:#8b5cf6,stroke:#8b5cf6,stroke-width:1px,color:#ffffff
        style C fill:#0d9488,stroke:#0d9488,stroke-width:1px,color:#ffffff
        style D fill:#0d9488,stroke:#0d9488,stroke-width:1px,color:#ffffff
        style E fill:#f59e0b,stroke:#f59e0b,stroke-width:1px,color:#ffffff
        style F fill:#ef4444,stroke:#ef4444,stroke-width:1px,color:#ffffff
        style G fill:#0d9488,stroke:#0d9488,stroke-width:1px,color:#ffffff
        style H fill:#10b981,stroke:#10b981,stroke-width:2px,color:#ffffff



        D --> E{"Dry Run?<br>(using <i>echo</i>)"};
        E -- "Yes (Recommended)" --> F["<b>Display Command:</b><br><i>echo mv old_name new_name</i>"];
        E -- "No (Execute)" --> G["<b>Execute Command:</b><br><i>mv old_name new_name</i>"];
        F --> B;
        G --> B;
        B -- "No more files" --> H[End];
    end
            subgraph "sed Transformation"
            D1["<b>Input:</b><br>sensorlog_2025-07-08.txt"]
            D2["<b>Pattern:</b><br>s/sensorlog_([0-9]{4})-([0-9]{2})-([0-9]{2}).txt/.../"]
            D3["<b>Captures:</b><br>\\1 = '2025'<br>\\2 = '07'<br>\\3 = '08'"]
            D4["<b>Replacement:</b><br>sensorlog_\\3-\\2-\\1.txt"]
            D5["<b>Output:</b><br>sensorlog_08-07-2025.txt"]
            D1 --> D2 --> D3 --> D4 --> D5
        end

3. Dry Run and Execution:

Running the script above will produce a “dry run” output, showing you the commands it would execute:

Bash

mv sensorlog_2025-07-08.txt sensorlog_08-07-2025.txt
mv sensorlog_2025-07-09.txt sensorlog_09-07-2025.txt
mv sensorlog_2025-07-10.txt sensorlog_10-07-2025.txt

Warning: Always perform a dry run using echo before executing commands that modify or delete files, especially when scripting. A small regex error could have unintended consequences.

Once you are confident the commands are correct, remove the echo to perform the actual renaming.

Bash

for filename in sensorlog_*.txt; do
  new_filename=$(echo "$filename" | sed -E 's/sensorlog_([0-9]{4})-([0-9]{2})-([0-9]{2})\.txt/sensorlog_\3-\2-\1.txt/')
  mv "$filename" "$new_filename"
done

ls

Output:

sensorlog_08-07-2025.txt sensorlog_09-07-2025.txt sensorlog_10-07-2025.txt

Example 3: Modifying a Configuration File In-Place

Let’s say we have a simple application configuration file, app.conf, and we need to update the SERVER_IP and enable a DEBUG_MODE setting for a test deployment.

Objective: Use sed to modify configuration values directly in the file.

1. Create the Configuration File:

Bash

cat << EOF > app.conf
# Application Configuration
SERVER_IP=192.168.1.100
SERVER_PORT=8080
# Set to true to enable verbose logging
DEBUG_MODE=false
EOF

2. Modify the SERVER_IP:

We want to find the line starting with SERVER_IP= and replace whatever follows with the new IP address.

Bash

# Use the -i flag to edit the file in-place.
# The regex matches the start of the line, the key, and discards the old value.
sed -i -E 's/^SERVER_IP=.*/SERVER_IP=10.0.0.42/' app.conf

Explanation:

-i: This is the crucial in-place edit flag. It tells sed to write the changes back to the original file.
^SERVER_IP=: This anchor ensures we only match the line that begins with SERVER_IP=, preventing accidental substitution if that string appeared elsewhere.
.*: This matches the rest of the line (any character, zero or more times), effectively targeting the old value for replacement.

3. Modify the DEBUG_MODE:

Similarly, we can change the debug flag.

Bash

sed -i -E 's/^DEBUG_MODE=.*/DEBUG_MODE=true/' app.conf

4. Verify the Changes:

Now, view the file to confirm the modifications were successful.

Bash

cat app.conf

Output:

Bash

# Application Configuration
SERVER_IP=10.0.0.42
SERVER_PORT=8080
# Set to true to enable verbose logging
DEBUG_MODE=true

This technique is extremely common in deployment scripts for configuring an application on an embedded device without manual intervention.

Common Mistakes & Troubleshooting

Regular expressions are incredibly powerful, but their syntax is dense and can be unforgiving. Here are some common pitfalls and how to avoid them.

Mistake / Issue	Symptom(s)	Troubleshooting / Solution
Forgetting to Escape Metacharacters	A pattern with a literal dot like 192.168.1.1 accidentally matches 192.168.A.1 because . matches any character.	Solution: Escape metacharacters (. * + ? [ ] ( ) { } \| ^ $) with a backslash (\) to match them literally. Incorrect: grep “192.168.1.1” Correct: grep “192\.168\.1\.1”
Greedy Quantifier Matching Too Much	In text like <p>one</p><p>two</p>, the pattern <p>.*</p> matches the entire line instead of just the first paragraph.	Solution: Make the pattern more specific. Since standard grep/ sed lack lazy quantifiers, use a negated character set. Greedy: s/<p>.<\/p>// Specific: s/<p>[^<]<\/p>// ([^<]* means “match any character that is not a <, zero or more times”).
BRE vs. ERE Confusion	The pattern “eth0: leased ([0-9]+)” fails to capture the IP address when used with default grep.	Solution: Use the -E flag for Extended Regular Expressions (ERE) to avoid escaping metacharacters like +, ?, {}, and (). BRE style (works but messy): grep “eth0: leased $[0-9]\+$” ERE style (cleaner): grep -E “eth0: leased ([0-9]+)”
Misunderstanding Anchors	A pattern ^ERROR fails to match an error message that is indented with spaces.	Solution: Remember that ^ and $ match the absolute start and end of a line. To allow for leading/trailing whitespace, use [[:space:]]. Strict: ^ERROR Flexible: ^[[:space:]]ERROR
Overly Complex Patterns	A single, 100-character regex is created to parse a log file. It is impossible to read, debug, or maintain.	Solution: Adhere to the Unix philosophy. Chain simple, understandable commands together using pipes (\|). Monolith: grep -oE ‘some-huge-pattern’ file Pipeline: grep ‘keyword’ file \| grep -v ‘exclude’ \| sed ‘s/transform//’

Exercises

Filtering dmesg for USB Devices.
- Objective: List all USB devices detected during boot, showing only the manufacturer and product name.
- Guidance:
  1. Run dmesg | grep -i "usb". Look for lines containing “Product:” and “Manufacturer:”.
  2. Create a grep pipeline. The first grep should find lines with “Product:” or “Manufacturer:”. Use the | operator within an ERE pattern for this (grep -E 'Product|Manufacturer').
  3. Pipe the output of that command to a second grep -oE to extract just the text after “Product: ” or “Manufacturer: “. The pattern should match the remaining part of the line.
- Verification: The final output should be a clean list of names, without the “Product:” or “Manufacturer:” prefixes.
Extracting Temperature Data.
- Objective: The Raspberry Pi 5’s temperature can be read from /sys/class/thermal/thermal_zone0/temp. The output is a number like 45821, which represents 45.821°C. Write a script that reads this file and prints “Current temperature: 45.8 C”.
- Guidance:
  1. Use cat to read the file.
  2. Pipe the output to a sed command.
  3. Use capturing groups to capture the first two digits (\1) and the next three (\2). The regex might look something like ^([0-9]{2})([0-9]{3})$.
  4. The sed replacement string should format the output as "Current temperature: \1.\2 C". You can wrap this in an echo statement.
- Verification: Running your script should produce a single, well-formatted line of text with the current CPU temperature.
Commenting Out Debug Lines in a Script.
- Objective: You have a shell script with debug statements prefixed with echo "DEBUG:". Create a sed command to comment out all these lines by adding a # at the beginning.
- Guidance:
  1. Create a sample script file (test_script.sh) with a few normal echo lines and a few echo "DEBUG:" lines.
  2. Use sed -i to perform an in-place edit.
  3. Your regex should anchor to the beginning of the line (^) and look for the literal string echo "DEBUG:".
  4. The replacement string should use &, which is a special sed character that represents the entire matched pattern. The replacement will be "#&", which puts a # before the original matched line.
- Verification: After running the command, cat test_script.sh should show the debug lines commented out.
Validating MAC Addresses.
- Objective: Write a grep command that can validate if a given string is a valid MAC address (six pairs of hexadecimal characters separated by colons, e.g., b8:27:eb:12:34:56).
- Guidance:
  1. Use echo "some_string" | grep -E ... to test your pattern.
  2. A hexadecimal character can be represented by the character class [0-9a-fA-F].
  3. The pattern for one pair would be [0-9a-fA-F]{2}. The pattern for the full address would be five groups of a hex pair followed by a colon, and one final hex pair.
  4. Use grouping (...) and a quantifier {5} to repeat the first part of the pattern. The full regex will be quite long but very precise. Anchor it with ^ and $ to ensure the entire line must match the pattern.
- Verification: Test your command with valid and invalid MAC addresses (e.g., with incorrect characters like ‘G’, wrong number of pairs, or wrong separators). The command should only produce output for the valid ones.

Summary

Regular Expressions (Regex) are a powerful language for defining text patterns, forming the basis of many advanced command-line tools.
grep is the primary tool for searching text. It filters input line by line, printing only the lines that match a given regular expression.
sed (Stream Editor) is used for transforming text. Its most common function is substitution (s/find/replace/), which can use captured groups from a regex for complex reformatting.
Metacharacters like ^, $, ., *, +, ?, [], and () provide the flexibility to define complex and variable patterns rather than just literal strings.
Capturing Groups () and Backreferences \1, \2 are key for reordering and reusing parts of a matched string, especially in sed.
BRE vs. ERE: Using the -E flag with grep and sed enables Extended Regular Expressions, which offer a cleaner and more powerful syntax.
Text processing is a critical skill in embedded Linux for log analysis, system configuration, and automation. Mastering grep and sed is a significant step toward becoming a proficient embedded systems developer.

Chapter 24: Advanced Shell Scripting: Regular Expressions (`grep`, `sed`)

Chapter Objectives

Introduction

Technical Background

The Genesis and Philosophy of Regular Expressions

Anatomy of a Regular Expression

Anchors: Tying Matches to Positions

Character Classes and Sets: Matching One of Many

Quantifiers: Specifying Repetition

Grouping and Capturing

The `grep` Utility: A Regex-Powered Filter

The `sed` Utility: The Stream Editor

Practical Examples

Example 1: Analyzing Kernel Boot Messages with `grep`

Example 2: Batch Renaming Files with `sed` and `mv`

Example 3: Modifying a Configuration File In-Place

Common Mistakes & Troubleshooting

Exercises

Summary

Further Reading

Leave a Comment Cancel Reply

Chapter 24: Advanced Shell Scripting: Regular Expressions (grep, sed)

Chapter Objectives

Introduction

Technical Background

The Genesis and Philosophy of Regular Expressions

Anatomy of a Regular Expression

Anchors: Tying Matches to Positions

Character Classes and Sets: Matching One of Many

Quantifiers: Specifying Repetition

Grouping and Capturing

The grep Utility: A Regex-Powered Filter

The sed Utility: The Stream Editor

Practical Examples

Example 1: Analyzing Kernel Boot Messages with grep

Example 2: Batch Renaming Files with sed and mv

Example 3: Modifying a Configuration File In-Place

Common Mistakes & Troubleshooting

Exercises

Summary

Further Reading

Related Posts

Leave a Comment Cancel Reply

Chapter 24: Advanced Shell Scripting: Regular Expressions (`grep`, `sed`)

The `grep` Utility: A Regex-Powered Filter

The `sed` Utility: The Stream Editor

Example 1: Analyzing Kernel Boot Messages with `grep`

Example 2: Batch Renaming Files with `sed` and `mv`
